Pharmaceutical freeze dryer

Overview

The pharmaceutical freeze dryer is a device used to prepare and dry medicines. Its working principle is to freeze the medicine to a temperature below its freezing point, and then dry it in a vacuum environment, so that the water in the medicine evaporates through sublimation, and finally the dry medicine is obtained.

components

Pharmaceutical freeze-drying machine is a kind of equipment widely used in the medical field. It is used to dry liquid drugs or biological products into solid drugs or products. It has the advantages of high efficiency, safety and stability. The components of a pharmaceutical freeze-drying machine usually include the following parts:

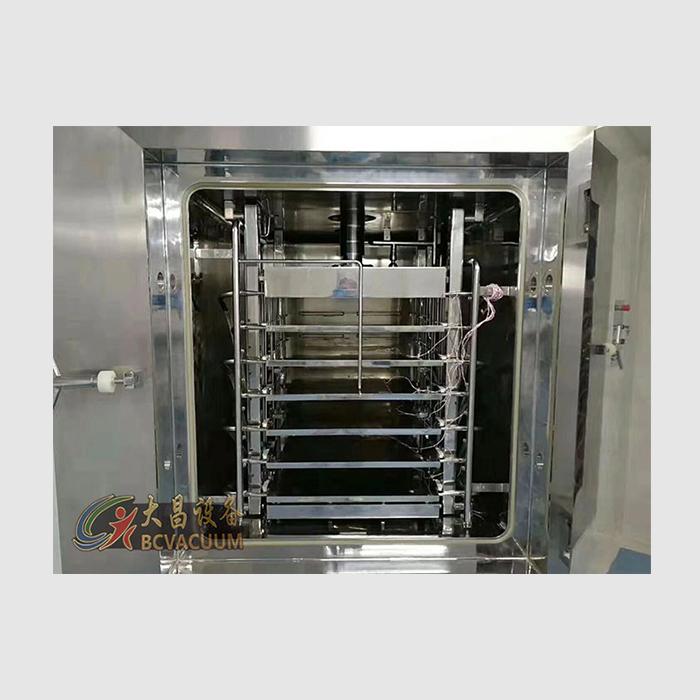

1. Freeze-drying box:The freeze-drying box is the core component of the pharmaceutical freeze-drying machine. It is used to place the drugs or products to be dried. There are usually several shelves inside, which can dry multiple items at the same time. The outer shell of the freeze-drying box is usually made of stainless steel and other materials, which has good anti-corrosion properties.

2. Heating and cooling system:The heating and refrigeration system is a key component of the pharmaceutical freeze-drying machine and is used to control the temperature of the freeze-drying box. Heating systems usually use heating elements such as heaters or electric heating tubes, while refrigeration systems usually use refrigeration elements such as compression refrigerators. Through the heating and refrigeration system, the temperature of the freeze-drying box can be controlled within an appropriate range to ensure the drying quality of the drug or product.

3. Vacuum system:The vacuum system is an important part of the pharmaceutical freeze-drying machine. It is used to extract the air in the freeze-drying box to form a vacuum environment. Vacuum systems usually include vacuum pumps, vacuum valves, vacuum meters and other equipment. Through the vacuum system, the air pressure in the freeze-drying box can be reduced to the required level to ensure the drying quality of the drug or product.

4. Control system:The control system is the control center of the pharmaceutical freeze-drying machine and is used to monitor and control the entire freeze-drying process. Control systems usually include temperature controllers, vacuum controllers, humidity controllers, pressure controllers and other equipment. Through the control system, the temperature, humidity, pressure and other parameters of the freeze-drying box can be monitored and controlled in real time to ensure the drying quality of drugs or products. Other components of the pharmaceutical freeze-drying machine include a plate-layer heat transfer fluid circulation heating and cooling system, a water vapor condenser and a condenser cooling system, and aAir pumping and vacuum control systems, CIP systems, SIP systems, hydraulic systems, control systems, etc. These components work together to form a pharmaceutical freeze-drying machine, an efficient, safe and stable equipment.

Working principle

The pharmaceutical freeze dryer is a device used to remove moisture from pharmaceuticals through the process of freezing and vacuum drying. Its working principle is to freeze the pharmaceutical solution in a low-temperature environment, then sublime and dry it under vacuum conditions to remove ice crystals. After the sublimation is completed, desorption and drying is performed to remove part of the bound water. Specifically, the working process of the pharmaceutical freeze-drying machine is as follows:

1. Inject the drug solution into the freeze-drying machine, and then freeze it in a low-temperature environment to form solid ice crystals.

2. During the freezing process, the freeze-dryer freezes all the water in the pharmaceutical solution to form solid ice crystals.

3. When the temperature of the drug solution drops below the freezing point, the ice crystals begin to sublimate, separating the water from the drug solution. The water vapor generated by sublimation is pumped out through a vacuum pump.

4. After the sublimation is completed, the water in the drug solution has been basically removed. At this time, desorption and drying can be performed to further remove the remaining water in the drug solution.

5. Finally, the pharmaceutical solution is cooled to room temperature through air cooling or water cooling to complete the working process of the pharmaceutical freeze dryer. The working principle of the pharmaceutical freeze-drying machine is to use low temperature and vacuum conditions to separate the moisture in the medicine from the solution. In this way, the stability and quality of the medicine can be effectively improved. Pharmaceutical freeze dryers are widely used in pharmaceuticals, biological products, medical devices and other fields.

We will briefly introduce the introduction, functions, principles, components, etc. of pharmaceutical freeze-drying machines here. If you need to know more about ordering equipment, please contact us.

The pharmaceutical freeze dryer is a device used to remove moisture from pharmaceuticals through the process of freezing and vacuum drying. Its working principle is to freeze the pharmaceutical solution in a low-temperature environment, then sublime and dry it under vacuum conditions to remove ice crystals. After the sublimation is completed, desorption and drying is performed to remove part of the bound water. Specifically, the working process of the pharmaceutical freeze-drying machine is as follows:

1. Inject the drug solution into the freeze-drying machine, and then freeze it in a low-temperature environment to form solid ice crystals.

2. During the freezing process, the freeze-dryer freezes all the water in the pharmaceutical solution to form solid ice crystals.

3. When the temperature of the drug solution drops below the freezing point, the ice crystals begin to sublimate, separating the water from the drug solution. The water vapor generated by sublimation is pumped out through a vacuum pump.

4. After the sublimation is completed, the water in the drug solution has been basically removed. At this time, desorption and drying can be performed to further remove the remaining water in the drug solution.

5. Finally, the pharmaceutical solution is cooled to room temperature through air cooling or water cooling to complete the working process of the pharmaceutical freeze dryer.

Pharmaceutical lyophilizer (pharmaceutical freeze dryer) is a key equipment for freeze-drying pharmaceuticals in the pharmaceutical industry. Its core function is to remove moisture while protecting the active ingredients of pharmaceuticals through low-temperature freezing and vacuum sublimation technology, thereby achieving long-term stable storage of pharmaceuticals. The following are its main features:

1. Precise process control capabilities

Multi-stage program control: supports independent parameter settings (such as temperature, vacuum degree, time) for pre-freezing, sublimation drying, analytical drying and other stages to adapt to the process needs of different drugs.

Eutectic point test: Automatically detect the eutectic point of the material to ensure that the pre-freezing temperature is lower than the eutectic point to avoid drug crystallization and damage to the structure.

Precise temperature control: Use heat-conducting media (such as silicone oil) or shelf heating/cooling system to achieve a temperature accuracy of ±1°C and ensure the stability of the freeze-drying curve.

2. Comply with GMP and regulatory requirements

Sterile design: fully sealed cavity, smooth inner wall without dead corners, supports in-line sterilization (SIP) and cleaning (CIP), reducing the risk of contamination.

Verification support: Equipped with IQ/OQ/PQ verification document package, compliant with FDA, EU GMP and other international standards, facilitating corporate compliance.

Data traceability: Electronic records and audit tracking functions meet electronic data regulatory requirements such as 21 CFR Part 11.

3. High efficiency, energy saving and environmental protection

Efficient condensation system: Use silicone oil condenser or mixed condensation technology (such as ice condensation + silicone oil) to improve water vapor capture efficiency and shorten drying time.

Energy-saving design: Heat recovery system, variable frequency vacuum pump and other technologies reduce energy consumption and are in line with the trend of green production.

Environmentally friendly refrigerants: Use low-GWP refrigerants (such as R507) to reduce carbon emissions.

4. Automation and intelligence

Fully automatic operation: The entire process is automated from feeding to discharging, reducing manual intervention and improving batch consistency.

Intelligent monitoring: real-time display of key parameters (temperature, pressure, vacuum degree), abnormal alarm and automatic shutdown functions.

Remote management: Supports SCADA or Industry 4.0 interface to realize remote monitoring and data analysis.

5. Safety and Reliability

Explosion-proof design: complies with ATEX standards and is suitable for freeze-drying of organic solvent drugs.

Redundant protection: dual vacuum pumps, backup power supply and other configurations to ensure production continuity.

Emergency stop: safety interlock device to quickly stop operation under abnormal circumstances.

6. Flexibility and scalability

Modular design: supports multi-shelf and multi-manifold configurations, adapting to the expansion needs from laboratory research and development to mass production.

Customized services: Freeze-drying solutions can be customized based on drug characteristics (such as biological products, injections, vaccines).

7. Materials and hygiene standards

316L stainless steel: The contact surface is made of medical grade stainless steel, which is corrosion-resistant and easy to clean.

Smooth surface treatment: no welds and no dead corners design to avoid the growth of microorganisms.

8. Data recording and reporting

Electronic batch records: Automatically generate batch reports, including key parameters such as time, temperature, pressure, etc. for easy traceability.

Process optimization: Through historical data analysis, the freeze-drying curve is optimized to improve efficiency and drug quality.

Pharmaceutical freeze dryers (freeze dryers) have a wide range of applications in the pharmaceutical field. Its core advantage is to protect the active ingredients of pharmaceuticals through low-temperature dehydration technology, extend the shelf life, and maintain sterility at the same time. The following is its main application scope and specific scenarios:

1. Biological products

Vaccine: For example, COVID-19 mRNA vaccine, influenza vaccine, etc., the freeze-drying process can avoid high-temperature inactivation and ensure antigen stability.

Monoclonal antibodies (monoclonal antibodies): such as trastuzumab and pembrolizumab, which are used for cancer treatment, can be lyophilized for long-term storage and transportation.

Cytokines and recombinant proteins: such as interferon, growth hormone, etc., freeze-drying can maintain their biological activity.

Gene therapy products: such as adeno-associated virus (AAV) vectors, CAR-T cell preparations, etc., low-temperature drying reduces damage to active cells or virus particles.

2. Injectable preparations

Lyophilized powder injection: antibiotics (such as cephalosporins), antiviral drugs (such as acyclovir), anti-tumor drugs (such as paclitaxel), etc., to avoid the instability of liquid dosage forms.

Liposomes and nanoparticles: For example, doxorubicin liposomes and paclitaxel albumin nanoparticles, freeze-drying technology can maintain their particle size distribution and drug sustained release properties.

Microspheres and implants: such as leuprolide microspheres, which maintain sustained-release structural integrity after freeze-drying.

3. API

Heat-sensitive APIs: such as proteins, peptides, and nucleotide drugs, avoid denaturation or decomposition caused by high-temperature drying.

Sterile API: API that is directly used in the production of sterile preparations and does not require secondary sterilization after freeze-drying.

4. Diagnostic reagents and biological samples

In vitro diagnostic reagents: such as standards and quality control materials in enzyme-linked immunoassay kits, which can be freeze-dried to facilitate cold chain transportation and long-term storage.

Clinical sample preservation: such as serum, plasma, and cell samples for scientific research or clinical testing.

5. Biotechnology products

Cell and gene therapy products: such as mesenchymal stem cells, induced pluripotent stem cells (iPSC), and freeze-drying technology provide long-term storage solutions for cell therapy.

mRNA and nucleic acid drugs: such as small interfering RNA (siRNA) and antisense oligonucleotides (ASO), freeze-drying can enhance stability.

6. Special dosage forms

Orally disintegrating tablets: A porous structure is prepared through freeze-drying technology to achieve rapid dissolution.

Inhalation preparations: such as freeze-dried powder inhalation preparations (such as budesonide) to ensure the dispersion and stability of drug particles.

7. Probiotics and microbial preparations

Probiotic freeze-dried powder: such as Bifidobacterium and Lactobacillus, which maintains the activity of the strains and extends the shelf life.

Microbial diagnostic reagents: such as standard strains for bacterial and virus detection.

8. Clinical trial samples

Samples in the new drug development stage: support drug stability research and facilitate analysis and comparison of samples from different batches.

9. Application scenario expansion

Disaster emergency medicine reserve: Freeze-dried medicines do not require a cold chain and are suitable for remote areas or emergency scenarios.

Combination drugs: such as multi-component vaccines or compound preparations, freeze-drying can avoid reactions between components.
