Archival cultural relics and books mounting, flattening, drying and restoration machine
-
model/tower
DCDAXF-7
-
Specification/item
125*75*35cm
-
price/item
Subject to consultation
-
Material/batch
Carbon steel material

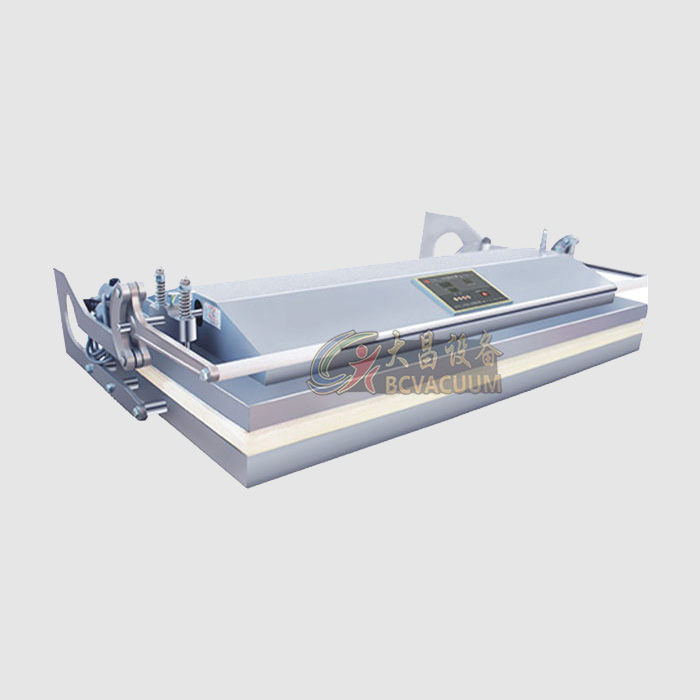

File mounting and flattening-DCZBYPJ economical type
The file mounting machine is used to repair various damaged paper files, books, documents and materials. Special archive materials such as albums, memorials, hand scrolls, copybooks, etc. can be completed in one go, which is impossible to complete by manual mounting. You can imitate the oil-paper method used in manual mounting, and use non-woven lining to repair the severely moldy, crispy, and broken paper files that have been uncovered. It is very simple and the effect is better than manual mounting.
Overall dimensions: 125*75*35cm
Heating surface: 110*60cm
Weight: 100kg
Power: 1200W
Voltage: 220V
It uses domestic top-grade heated soft tape as the movement. It has a designed service life of more than fifteen years and is easy to operate. The current temperature of the machine can be adjusted according to the scale on the temperature adjustment knob. The temperature control accuracy is high. It can not only frame rice paper calligraphy and paintings, but also cross-stitch, paper-cutting, and post-production photos in the photo studio, achieving no cross-border use.

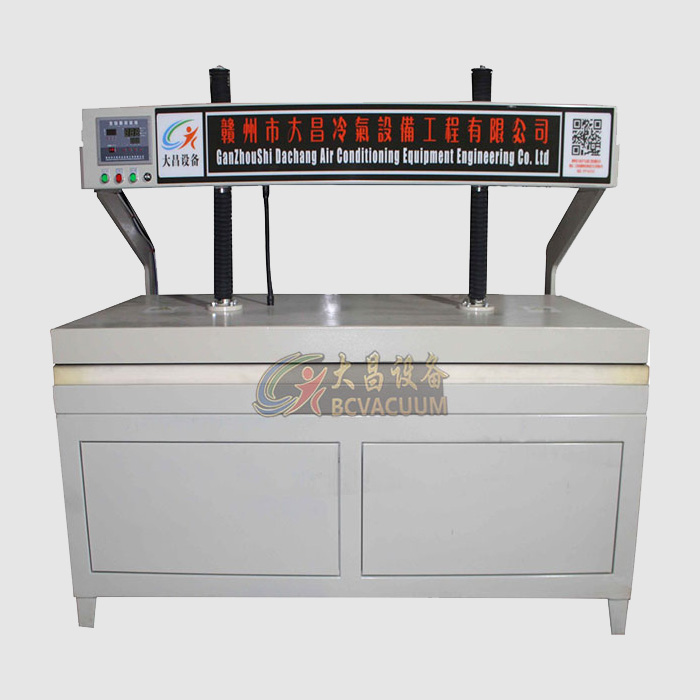

File mounting and flattening-DCZBYPJ electric dehumidification (no limit on length and width)
Overall dimensions: 265*145*100cm
Heating surface: 250*120cm
Weight: 850kg
Power: 4000W
Voltage: 380V
Pure electric power supply, ultra-quiet, no air compressor (air pump) required. All series of electric calligraphy and painting mounting and flattening machines adopt the humanized design concept of infinite length and infinite width. Vertical and horizontal travel, entry and exit from all sides, fast and safe operation. Imported heating soft belt is used for the movement and PID computer temperature control. The LCD display can be used to rise at a timed time of 999 seconds. The operation performance is simple, the manual and remote-controlled electric lifting is safe and fast, and the current temperature and heating time of the machine can be intuitively seen. The temperature control accuracy is high. It can not only frame rice paper calligraphy and paintings, but also cross-stitch, paper-cutting, post-production photos in the photo studio, silk embroidery, Jinbo paintings, woven cotton paintings and other works. Of course, it can also be applied to other industries to achieve non-cross-border use.

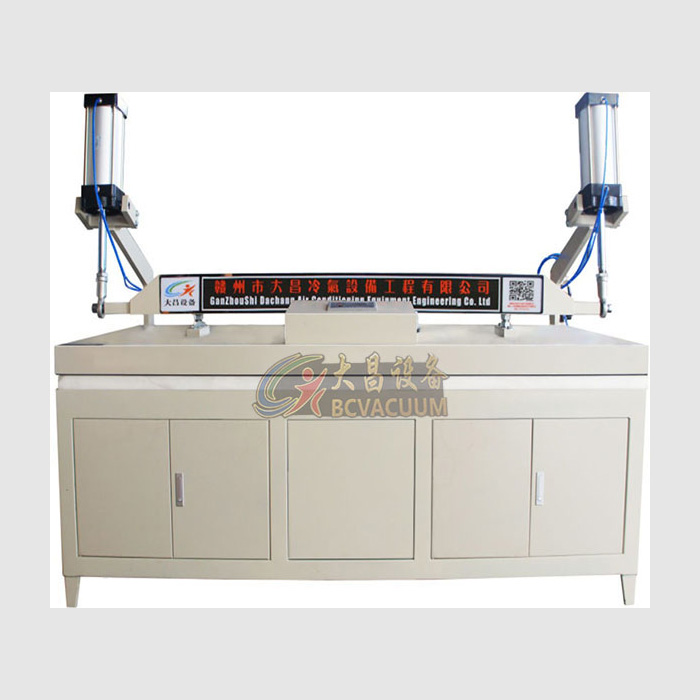

File mounting and flattening-DCZBYPJ pneumatic moisture removal (no limit on length and width)
Overall dimensions: 175*117*100cm
Heating surface: 160*90cm
Weight: 360kg
Power: 2300W
Voltage: 220V
The pneumatic mounting and flattening repair machine uses an imported heating soft belt as the movement. It is easy to operate and can intuitively see the current temperature and heating time of the machine. The temperature control accuracy is high. It can not only mount rice paper calligraphy and paintings, but also cross-stitch, paper-cutting, post-production photos in the studio, silk embroidery, Jinbo paintings, woven cotton paintings and other works. Of course, it can also be applied to other industries to achieve barrier-free cross-border use.
