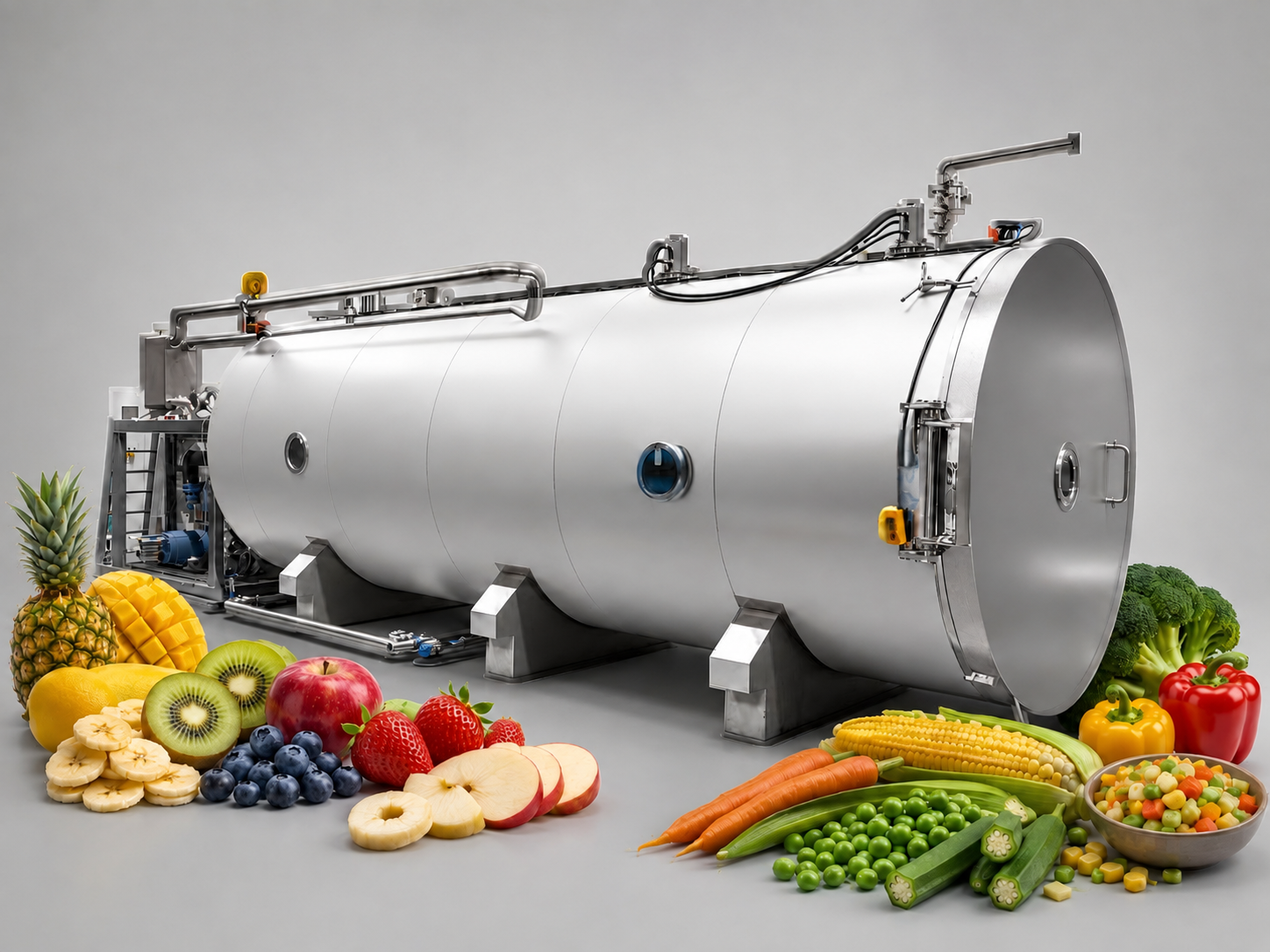

An industrial freeze dryer (or lyophilizer) is a specialized vacuum drying system designed to remove moisture from products while preserving their original structure, color, flavor, and nutritional value.

Unlike conventional hot-air drying, freeze drying operates at low temperatures utilizing sublimation. This makes it the ideal processing solution for temperature-sensitive products like premium foods, pet treats, and pharmaceuticals.

Here is a complete breakdown of how the industrial freeze drying process works and how to choose the right equipment for your production line.

The 3 Core Stages of Freeze Drying

The freeze drying process consists of three highly controlled stages:

1. FreezingThe product is frozen to a specific low temperature, turning its internal moisture into ice crystals. Uniform and stable freezing is critical, as it dictates the product's final structure and drying efficiency.

2. Primary Drying (Sublimation)A vacuum system reduces the pressure inside the chamber while controlled heat is applied to the product shelves. Under these low-pressure conditions, the ice undergoes sublimation—converting directly from a solid (ice) into water vapor without ever becoming a liquid. The vapor is then pulled toward a low-temperature condenser, where it is captured as ice.

3. Secondary Drying (Desorption)Once the ice is removed, a small amount of bound moisture remains. The chamber temperature is gradually increased to release this residual moisture (desorption). This precise moisture control ensures maximum shelf life and product stability.

What Makes Up an Industrial Freeze Dryer?

To achieve large-scale, consistent production, several key components must work seamlessly together:

• Drying Chamber: Houses the product shelves and maintains a strict vacuum environment.

• Refrigeration System: Provides the ultra-low temperatures needed for product freezing and condenser operation.

• Vacuum System: Extracts air and vapor to maintain the precise pressure required for sublimation.

• Condenser: Captures water vapor released during primary drying and freezes it back into ice to protect the vacuum pump.

• Heating System: Delivers stable, uniform heat to the shelves to drive sublimation without damaging the product.

• Smart Control System: Automates recipes and monitors critical parameters like shelf temperature, chamber pressure, and drying time.

•


Common Applications

Industrial freeze drying is highly versatile and widely used across multiple high-value industries:

• Food & Beverage: Tropical fruits (mango, pineapple, strawberries), vegetables, coffee, and tea.

• Pet Food: Premium freeze-dried raw meats (beef, chicken, fish) and nutrient-rich pet treats.

• Pharmaceuticals & Biotech: Vaccines, biological formulations, and diagnostic materials (requiring highly specialized, ultra-precise machinery).

How to Choose the Right Freeze Dryer for Your Factory

Buying an industrial freeze dryer is a significant investment. Beyond just the chamber size, you must evaluate:

1. Product Type & Thickness: Different materials require different freezing and drying recipes.

2. Batch & Daily Capacity: Match the machine's loading area to your daily production targets.

3. Final Moisture Requirements: Determines the drying cycle length and energy consumption.

4. Energy & Operating Costs: Look for efficient refrigeration and vacuum designs to ensure a profitable ROI.

Partner with a Professional Manufacturer

在 Dachang Equipment, we specialize in engineering high-efficiency industrial freeze drying systems for the food, pet food, and pharmaceutical sectors globally.

There is no "one-size-fits-all" drying time. Our engineers work closely with you to evaluate your specific product characteristics, batch capacity, and production goals to configure the most cost-effective solution.

Planning a new freeze drying project?Contact us today with your product type and target capacity, and our technical team will help you build the perfect drying process.
