Industrial Freeze Drying Technology: High Fidelity Preservation for Fruit and Pet Food

Global demand for high-value-added food products — such as crunchy tropical fruits, dehydrated vegetables and ultra-premium pet food (raw diets/BARF) — has driven industrial processing to evolve beyond conventional thermal drying. THE industrial freeze drying (known worldwide as freeze-drying) has established itself as the reference standard for preservation that maintains the organoleptic, nutritional and structural integrity of inputs.

Unlike hot air dehydration, which uses high temperatures and causes cell shrinkage (shrinkage) and loss of volatile compounds, freeze drying operates under deep vacuum conditions and cryogenic temperatures, removing water by sublimation.

In this technical article, we explore the physicochemical mechanics of freeze drying and its practical application in the processing of fruits and pet treats.

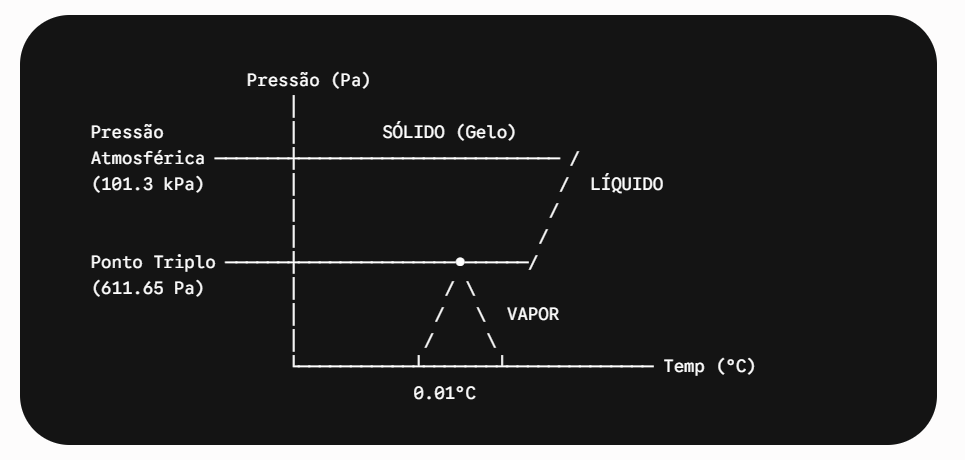

The Physical Principle: Sublimation at the Triple Point of Water

The operation of freeze drying is based on the thermodynamic properties of water. When operating in triple point of water (temperature of $0{,}01^\circ\text{C}$ and pressure of $611{,}65\text{ Pa}$or$0{,}006\text{ atm}$), liquid water ceases to exist in a stable form.

By providing controlled thermal energy under deep vacuum conditions (generally between $10\text{ Pa}$e$50\text{ Pa}$), the ice retained in the product matrix passes directly from the solid state to the gaseous state, without passing through the liquid state.

This phenomenon prevents the collapse of the cell wall of plant and animal tissues, ensuring a highly porous structure.

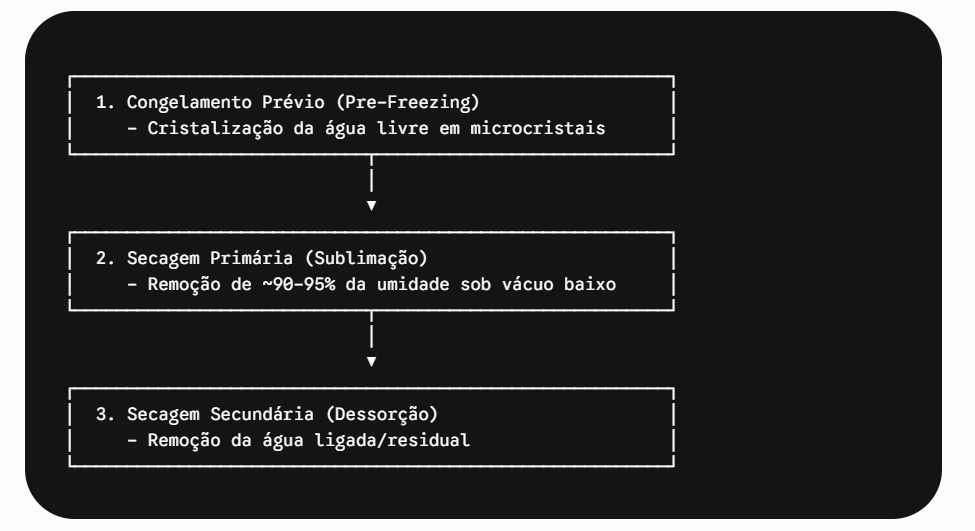

The 3 Stages of the Industrial Freeze Drying Cycle

A complete freeze-drying cycle on an industrial scale is divided into three critical phases operated with millimeter precision:

1. Pre-Freezing

The raw material (whether mango slices, whole strawberries or blocks of raw meat) is subjected to ultra-rapid freezing, reaching temperatures between $-35^\circ\text{C}$e$-50^\circ\text{C}$. Rapid freezing is essential: it creates ice microcrystals that do not pierce cell membranes, preserving the product's texture after rehydration.

2. Primary Drying (Sublimation)

With the chamber under deep vacuum, radiant plates apply gentle thermal energy. The ice sublimates and the water vapor migrates to the condenser (ice trap), which operates at extremely low temperatures (often $-50^\circ\text{C}$a$-80^\circ\text{C}$). This stage remove about 90% a 95% of the free water contained in the food.

3. Secondary Drying (Desorption)

To ensure long-term microbiological stability, moisture molecularly bound to proteins and carbohydrates must be removed. The temperature of the plates is slightly raised while the vacuum pressure is reduced to a minimum. The final moisture content of the product is reduced to 1% a 3%.

Technological Comparison: Freeze-drying vs. Traditional Methods

High Performance Industrial Applications

Fruit and Vegetable Processing

Freeze drying is especially recommended for tropical fruits with a high sugar content and heat-sensitive compounds (such as banana, pineapple, açaí, strawberry and mango). As there is no caramelization of sugars or degradation of natural pigments (anthocyanins, carotenoids), the final product maintains its bright color and intense natural flavor.

Pet Food and Nutraceutical Food Industry

In the manufacture of snacks and animal feed (raw pet food / BARF), freeze-drying eliminates the risk of bacterial contamination by keeping raw proteins without thermal denaturation. The porosity of the freeze-dried product allows owners to rehydrate the food with warm water in a few seconds, returning the snack to its original fresh state.

Process Engineering Considerations

To ensure energy efficiency and batch-to-batch consistency in large-scale industrial plants, three technical factors are essential:

1. Steam Condenser Capacity: The surface area and refrigeration system of the condenser must support the maximum rate of sublimation without loss of vacuum.

2. Heat Transfer Uniformity: Drying racks must have a minimum temperature deviation ($\le \pm 1^\circ\text{C}$) to avoid localized defrosting (melt-back).

3. Smart Vacuum Control: The use of capacitive sensors and pirani control allows optimizing heat conduction in a vacuum without compromising the product's melting point.

Conclusion

Industrial freeze-drying technology represents the pinnacle of food preservation engineering. By mastering the parameters of sublimation and thermal control under vacuum, the food and pet food processing industries are able to deliver high-quality products that meet the rigorous standards of the international market.
