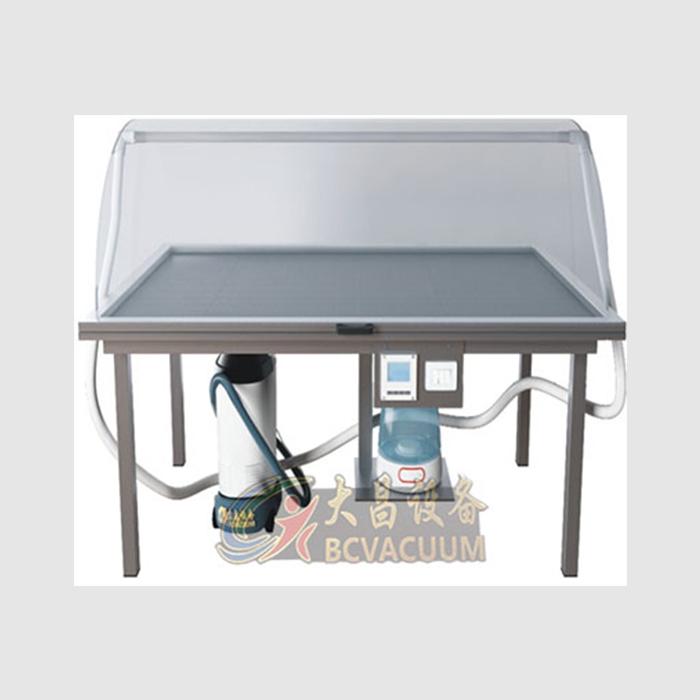

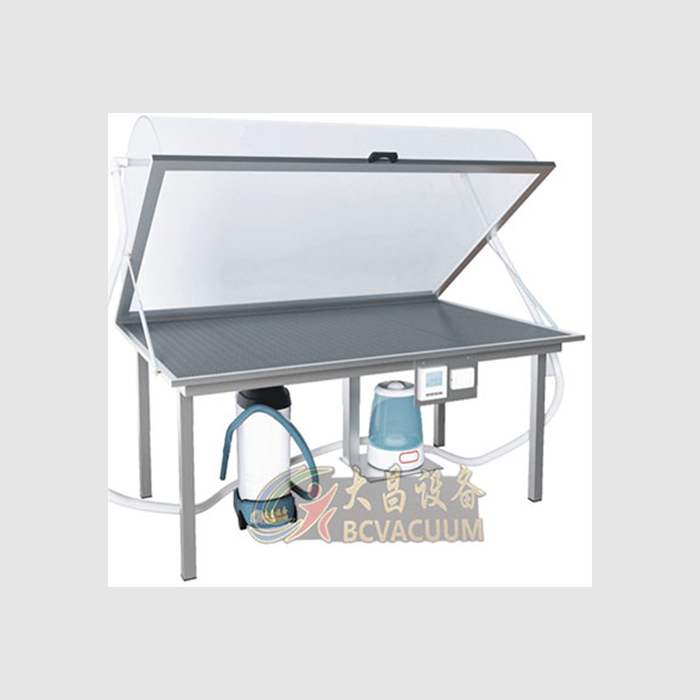

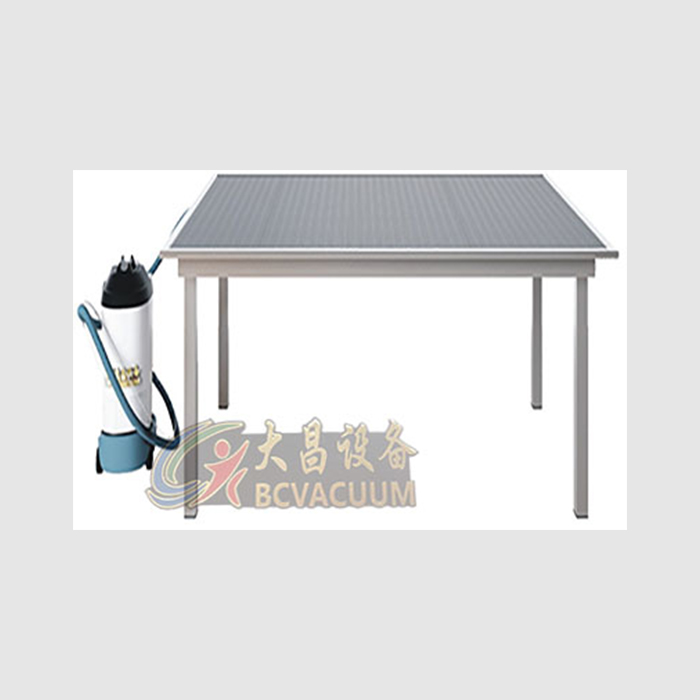

Archives, cultural relics, ancient books and paper restoration workbench

Features

1. Cooling system

2. Heating system switch and control unit

3. Vacuum system and automatic pressure control

4. Temperature knob controller display, pressure dial

5. Fault controller, display screen, warning light

6. Two perforated pressure plates of different thicknesses: the upper layer has a hole 1mm thick and a diameter of 1.5mm, and the lower layer has a hole 2mm thick and a diameter of 3.5mm.

Technical parameters

Configuration: low-pressure adsorption, heating, ultrasonic humidification, plexiglass dome, drainage, lighting, plexiglass dome, fixed support frame, two microporous adsorption plates.

Function: Remove dust, oil, ink, ink, blood, enzymes, rust, stains, calcification and toxic and harmful substances (bacteria, suspended solids, organic compounds) liquid dissolution and volatile substances from paper (fabrics) and filter function.

Brand: Dachang

Specifications: 110x150x85cm

Power supply: 220V single phase,

Power: 2.5kw,

Air suction volume: 215m3/hour,

Suction pressure: 2500mm water column,

Adjustable heating temperature: 90℃,

Controller size: 215*900*200mm
