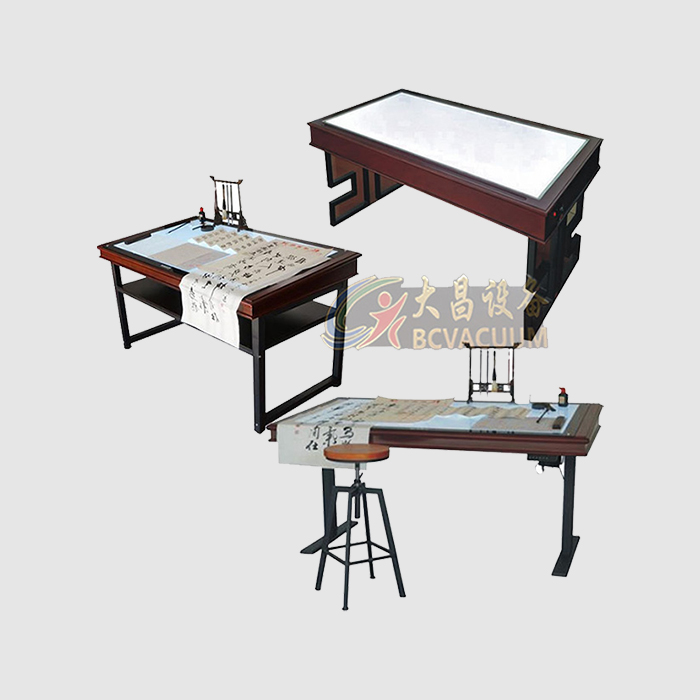

Archives, cultural relics, ancient books, calligraphy and painting copy restoration workbench

Desktop size:2430mm×1230mm

Transparent area:2160mm×960mm

Height size:800mm

Countertop material:The base material is covered with solid wood veneer, and the surface is environmentally friendly antique furniture paint.

Desk frame material:Iron return shaped steel rectangular tube bracket

Working slope:Tilt forward and tilt back design

Work panel:8mm reinforced safety tempered glass, UV printing

Scale size:Yes (accurate to millimeters, there are scales on all four sides)

Desktop load-bearing：≥60kg

Light source composition:LED components

Light guide method:Rear projection (dot matrix panel)

Light source life:≥50,000 hours

Adjustable brightness:3000LUX

Light color temperature:5500K-6400K

Input voltage:12V (safety voltage)

Power consumption:218W

Dimming method:Stepless dimming/switch (0-100% brightness adjustment)

It has a variety of practical and professional functions; it adopts ancient wood craftsmanship and translucent tabletop (ergonomic design of tilting forward and tilting back), retro wrought iron return table frame, 12V safe low voltage, energy-saving LED soft light eye protection cold light source, uniform and stable lighting, stepless dimming, low voltage and weak current, safe and reliable, pressure-resistant and 8mm thick safety tempered glass panel (with positioning scale ruler);

The appearance is classic and elegant, highlighting the high-quality scholarly atmosphere; it has a multi-functional and practical light-transmitting copy function, and is crafted in strict accordance with scientific concepts and national standards.

Mainly used in: observation, rendering, copying, repairing, mounting and other processes in the restoration of paper documents such as long Chinese calligraphy and painting, calligraphy, ancient books, drawings, archives, etc. (size can be customized)

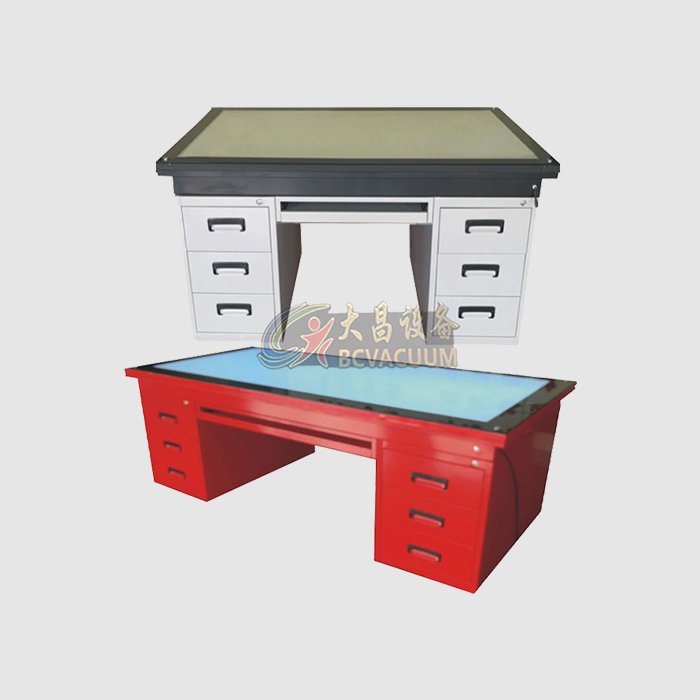

Desktop size:1500×900mm

Transparent area:1380×780mm

Table height dimensions:800mm

Desk body material:Steel table frame, melamine panel

Work panel:6mm reinforced safety tempered glass

Table inclination angle:0～50° multi-level inclination adjustment

Scale size:There are positioning scales on three sides (accurate to millimeters)

Desktop load-bearing:≤60KG

Light source type:LED components

Light guide method:Rear projection (dot matrix panel)

Working voltage:DC12V (safety voltage)

Rated power:90W

Light source life:≥50,000 hours

Adjustable brightness:3000LUX

Light color temperature:5500K-6400K

Dimming method:Touch-type stepless dimming/switch (0-100% light and dark adjustment)

It has a variety of practical and professional functions; it uses high-quality steel table frame, strong and durable appearance, 12V safe and low voltage, built-in energy-saving LED soft light and eye-protecting cold light source, even and stable lighting, stepless touch dimming, low voltage and weak current, safe and reliable, multi-level inclination adjustment of the table, large-capacity storage compartment space in the middle of the table body, pressure-resistant 8mm thick safety tempered glass panel (with positioning scale ruler) and other functions.

Mainly used in:The process of restoration of long-length Chinese calligraphy and painting, calligraphy, ancient books, drawings, archives and other paper documents involves observation, rendering, copying, repairing and mounting. (size can be customized)

The overall design of this workbench is scientific, reasonable, multi-functional, and fully embodies the characteristics of "professional, practical, durable and dual-use" in the teaching concept. The warranty is more than 5 years. It is mainly used for observing, sorting, repairing and mounting ancient calligraphy and paintings, books, archives and other paper documents. There is a storage partition table bucket in the middle of the table bracket. It is made of high-quality steel plate and bracket welded. It can be used to place stationery and drawings, etc. It is strong and durable. The bottom of the table leg bracket uses plastic wood adjustment screws to facilitate leveling and other functions, ensuring the solidity and stability of the overall structure: the welding process is full welding, the solder joints are firm, smooth, and beautiful, without bubbles, burrs, missing welds, and false welds, and have anti-scratch performance: all are sprayed evenly with electrostatic spraying, and complete degreasing, rust removal, pickling, and phosphating should be carried out before spraying The treatment process complies with the standards related to adhesion, gloss, chemistry, and impact such as GB6807-86, GB1720-79(89), GB/T1732-93, GB1743-79, GB1763-79(89), l/T2006-2006, etc. to ensure that there will be no plastic spray peeling or anti-rust phenomena.

Specific parameters

Overall dimensions:1500m×900×800m

Glass size:1500mm×900m

Luminous area:1380mm×780m

high:800mm

Working voltage:DC12V

Object function:There are three drawers on the left and right, and a storage steel drawer is installed in the middle of the left and right cabinets.

Work panel:8m tempered glass

Desktop load-bearing:≥60kg

Light source composition:LED components

Light guide method:Rear projection (dot matrix panel)

Light source life:≥50,000 hours

Light mode:Touch-type stepless dimming (can achieve 0-100% brightness adjustment)

Light color temperature:5500K-6400

Adjustable brightness:3000LX
