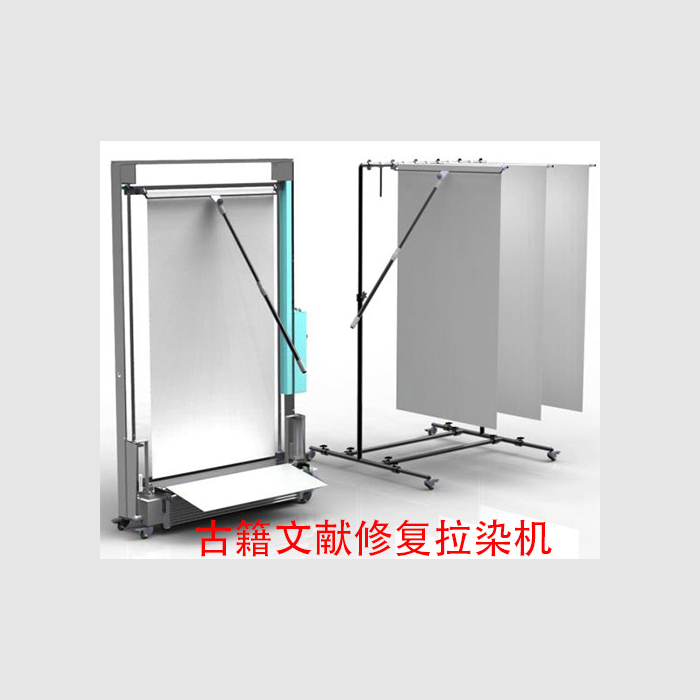

The ancient book repair and dyeing machine is a mechanical equipment used for the repair of ancient books, which can realize the dyeing of ancient book paper. Using a draw-dye machine for repair can effectively remove stains and traces on the surface of ancient paper, making the ancient paper look cleaner and smoother.
Purpose: When repairing paper documents such as calligraphy and painting, ancient books, and archives, new rice paper needs to be dyed to match the object being repaired; when dyeing, the dye requires a specific temperature to ensure the uniformity of its coloring. The "Ancient Book Repair Dyeing Machine" can greatly simplify traditional manual operations. It can control the dye at a constant temperature and use a motor to achieve a uniform speed dyeing function, making it convenient and fast to dye paper.
Working principle
The working principle of the dyeing machine is to immerse the ancient book paper in the dye solution, and then use the pulling force of the machine to evenly absorb the dye on the surface of the ancient book paper. In this way, the ancient book paper can be dyed to make the surface look cleaner and smoother.
Performance characteristics
1. Material: The machine base is made of high-quality 304 stainless steel plate, which is high-strength and corrosion-resistant. The fuselage is made of Q235-A cold-rolled steel, and the surface is electrostatically sprayed.
2. The transmission mode is worm gear + synchronous belt transmission mechanism, with no slipping and high self-locking performance.
3. The water tank heating element is a 24V silicone heating tape, which is low-voltage and safe. Temperature control technology is adopted to ensure stable and accurate temperature control.
4. The motor is a 24V deceleration stepper motor, which adopts PWM adjustment technology and has stepless and precise speed control.
Technical parameters
Model: DC-LRJ
Specifications: 1350*750*2200mm
Width of paper that can be dyed: ≤1100mm
Dye bath temperature control range: 20-80℃ (can be set by yourself)
Lifting stroke of dyeing rod: 1930mm
Dyeing rod lifting speed: 20-100mm/s (can be adjusted by yourself)
Input voltage: 220V 50HZ
Rated power supply voltage: AC220V to DC24V
Power: 600W
Body dimensions: 1350*760*2210mm
We will briefly introduce the ancient book repair and dyeing machine here. It should be noted that when using the dyeing machine to repair ancient books, ★Before using the dyeing machine, the ancient book paper needs to be pre-treated to remove stains and traces on the surface. ★When using a dyeing machine for dyeing, it is necessary to control the pulling force to avoid damage to the ancient book paper. ★After the dyeing is completed, the ancient book paper needs to be cleaned to remove excess dye and then dried. ★When using a dyeing machine to repair ancient books, you need to pay attention to keeping the working environment clean to avoid dye contamination of other items.
