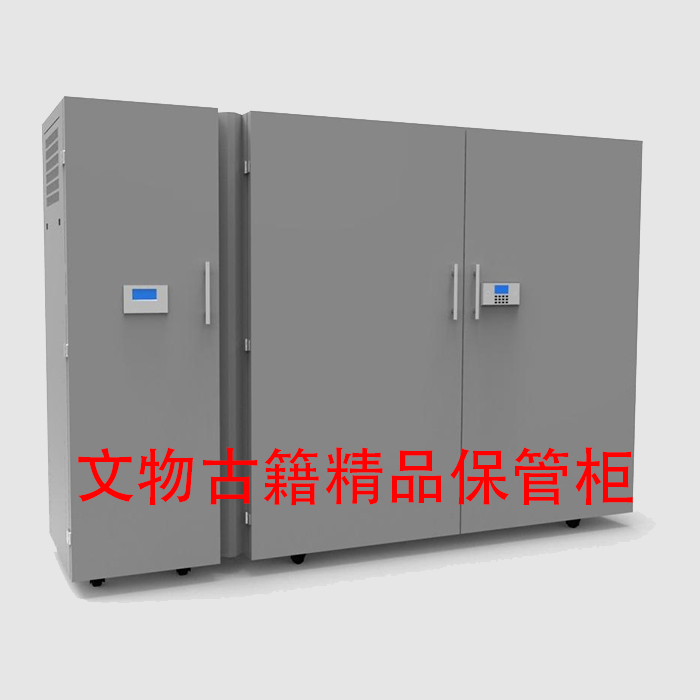

High-quality cultural relics and ancient books storage cabinet

Overview

According to the needs of the museum and the necessity of long-term preservation of cultural relics, this high-quality storage cabinet for cultural relics and ancient books won the third "National Top Ten Cultural and Museum Technology Products and Services" award. When it is difficult to maintain a constant temperature and humidity in the general environment of the cultural relics warehouse, the temperature and humidity of the cultural relics storage environment fluctuate greatly, and microorganisms such as mold are easy to breed and damage the cultural relics. In order to ensure the integrity of the non-material attributes reflected by the material properties of the cultural relics themselves, on the premise of ensuring the safe storage of cultural relics collections, modern technology wireless communication sensing monitoring technology and control technology combined with relevant cultural protection environmental control equipment are used to provide a good and suitable storage environment for cultural relics. Intelligent cultural relics storage device, this intelligent cultural relics storage device can not only ensure that the cultural relics collection can avoid damage in the natural environment during the storage process, extend the life of the cultural relics collection, but also achieve remote diversified environmental parameter monitoring and control, synchronous recording and management and maintenance functions for the cultural relics preservation environment through the Internet of Things cloud computing technology, so that cultural relics protection personnel can perceive more comprehensive information on cultural relics protection and obtain more scientific basis for cultural relics protection.

Function

1. The high-quality storage cabinet for cultural relics and ancient books is a device specially used to store and protect cultural relics and ancient books. It uses advanced materials and manufacturing technology and has functions such as moisture-proof, dust-proof, mildew-proof, and insect-proof, which can effectively protect the safety and integrity of cultural relics and ancient books.

2. The internal design of the high-quality cultural relics and ancient books storage cabinet is very unique, which can provide appropriate temperature and humidity control, as well as ultraviolet and oxygen concentration control. In addition, it can provide enough space to accommodate various types of cultural relics and ancient books to meet different storage needs.

3. The use of the high-quality cultural relics and ancient books storage cabinet is also very simple. You only need to put the cultural relics and ancient books into the cabinet, and then adjust the temperature and humidity to obtain the best storage conditions for the cultural relics and ancient books. At the same time, the high-quality storage cabinets for cultural relics and ancient books are also equipped with a variety of functions, such as alarms, monitoring, etc., which can effectively prevent the loss and damage of cultural relics and ancient books.

4. The maintenance of high-quality cultural relics and ancient books storage cabinets is also very important. Safekeeping cabinets should be cleaned and maintained regularly to ensure proper functioning. In addition, the cultural relics and ancient books in the safe should be checked regularly to ensure their safety and integrity.

Features

1. Meet the differentiated needs of different cultural relics for temperature and humidity. By stably and accurately controlling the temperature and humidity of the storage environment in the cultural relics storage cabinet, it can effectively control the direct impact of various harmful gases, floating dust and ultraviolet rays on cultural relics, make up for the lack of humidity control capabilities of central air conditioning, save air conditioning power consumption, and achieve energy conservation and emission reduction.

2. Use a combination of active and passive control methods to improve the microenvironment of cultural relic preservation. In the event of extreme weather or a power outage in the museum on weekends or holidays, the temperature and humidity can still be maintained stable within 48 hours even in the event of a power outage, achieving effective "stable and clean" control to slow down the spread of cultural relic diseases and achieve the purpose of long-term preservation.

3. Use the combination of wireless communication sensing monitoring technology and control technology to realize remote diversified environmental parameter monitoring and control, synchronous recording and management and maintenance functions for the cultural relics preservation environment through the Internet of Things cloud computing technology to achieve remote all-weather real-time monitoring and control.

4. Provide detailed, accurate and complete basis for environmental analysis of cultural relics and promote better scientific research work. It can effectively reduce the daily and complicated equipment inspection work of cultural conservation personnel and avoid the lag of environmental risk response; the equipment provider can provide professional remote monitoring and control maintenance, reduce management costs and improve management efficiency.

5. The split design of the control cabinet and the storage cabinet is used to better adjust the temperature, humidity and fluidity of the air in the storage cabinet, and solve the existing shortcomings of the cultural relic storage cabinets in the existing technology in terms of shock resistance, space limitations, safety risks, inconvenient maintenance and repair, etc., and facilitate the storage of cultural relics. It controls the maintenance and replacement of the temperature and humidity control device in the cabinet. When an unexpected situation occurs with the temperature and humidity control device, it can be quickly separated from the locker to improve the safety of the storage of cultural relics in the locker. The storage space can be customized according to the characteristics of the cultural relics. The storage capacity is large and one cabinet can be used for multiple purposes.

6. The equipment adopts a double-layer steel plate structure and is coated with anti-magnetic material inside, which has good sealing performance and good anti-magnetic performance. There is a password lock on the door of the cultural relic preservation cabinet, which controls the opening and closing of the locker door and improves the security performance of the locker. The bottom of the storage cabinet is equipped with feet and universal pulleys for easy movement, and the height of the feet is adjustable.

7. Fully automatic computer control: using the TD400C operating system, the temperature and humidity data in the cabinet, the working status and the year, month, day and time are dynamically displayed on the PLC screen. The interface is friendly and the interaction is convenient. It is convenient to query the current status parameters of the main components and the historical temperature and humidity data.

parameter

Model: DC-2000HWS

External dimensions: 2000*750*1950 mm

Inner size: 1850*610*1715 mm

Voltage: AC220V±10% 50Hz Peak power: 1950W Average: 900W

Box working environment temperature range: 0℃-40℃

Box working environment humidity range: 0-80%RH

Comprehensive humidity control of the cabinet is adjustable: 30%-60%RH

The integrated temperature control of the cabinet is adjustable: 15℃-30℃

Humidity control range: ±2%

Temperature control range: ±1℃

Humidity fluctuation range: ±5%

Temperature fluctuation range: ±2℃

Temperature measurement accuracy error: ±0.5℃

Humidity measurement accuracy error: ±4.5%
