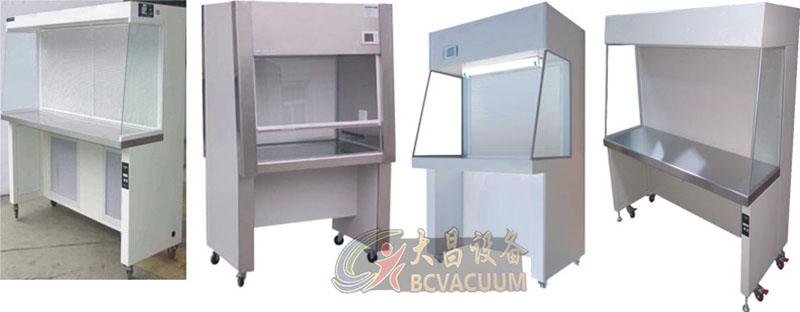

Parameters of File Purification Work Organizing Table Type A

　　The following is the parameter information of model A of the file purification work arrangement table:

　　Model: DCJHT-1

　　1. Air flow pattern: vertical laminar flow (blowing from top to bottom, air inlet at the top, primary, medium and high-efficiency three-stage filtration);

　　2. Purification level: Class 100 (US Federal Standard 209E);

　　3. Number of colonies: ≤0.5/m·hour; filtration efficiency for dust with particle size ≥0.3um is ≥99.995% (sodium flame method);

　　4. Average wind speed: ≥0.5m/s±20% (adjustable);

　　5. Noise: ≤62dB(A);

　　6. Vibration: ≤3um (X, Y, Z direction);

　　7. Lighting: ≥300LX; Power source: 220V 50HZ;

　　8. Lamps: lighting fixtures 20W×②; UV lamps: 20W×②;

　　9. Power consumption: The rated power is 800W, using Wuxi Huatong low-noise and high-pressure centrifugal fans, quantity: 2 units;

　　10. Overall dimensions: 1500W×750D×1620H (mm), operating dimensions: 1340×700×520 (mm);

　　11. Filter size: Medium efficiency filter size: 437*390×②; High efficiency filter size: 650*600*120MM×②;

　　12. Weight: about 160KG for one person;

　　13. Design: The arc-shaped design of the operating table, the novel punching design of the table, and the humanized design make employees’ operations more comfortable;

　　14. Windshield: The front windshield is designed with 5MM thick fully tempered glass. The windshield adopts the principle of plumb balance, which can be freely raised and lowered, positioned at any time, and is more convenient to operate;

　　15. Material: The outer box is made of high-quality cold-rolled plate and painted (four processes). The color is ivory white and the thickness of the steel plate is: 1.2MM;

　　16. Countertop material: The countertop is made of SUS304 stainless steel with a thickness of 1.2MM;

　　17. Control method: Adopts an adjustable air volume fan control system and a soft-touch switch to adjust the voltage to ensure that the wind speed is always in an ideal state;

　　18. Electrical appliance control: There are ultraviolet germicidal lamps, lights, and fan speed control soft contact switches on the control panel;

　　19. The bottom adopts high-quality universal movable wheels and universal fixed wheels, which can be positioned and fixed at any time;

　　20. The surrounding seals are all made of American "Dow Corning" brand sealant, which has good sealing performance and is environmentally friendly and healthy;

　　21. Advantages: All filters are produced in class 10,000 dust-free workshops, and all are tested for leaks one by one before leaving the factory;

　　We will briefly introduce the parameters of Type A of the file purification work arrangement table here. If you need more information, please contact our staff.
