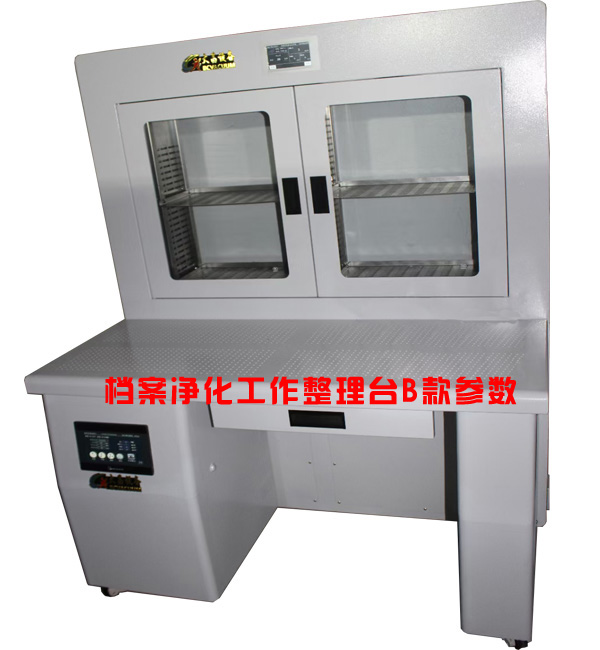

Parameters of File Purification Work Organizing Table B

　　The following parameters of the file purification work arrangement table B are detailed:

　　Model: DCJHT-2

　　1. Air flow pattern: vertical laminar flow (upward blowing and side suction, air inlet at the top, primary, medium and high-efficiency three-stage filtration);

　　2. Number of colonies: ≤0.5/m·hour; filtration efficiency for dust with particle size ≥0.3um is ≥99.995% (sodium flame method);

　　3. Average wind speed: ≥0.5m/s±20% (adjustable);

　　4. Noise: ≤72dB(A);

　　6. Vibration: ≤3um (X, Y, Z direction);

　　7. Lighting: ≥300LX; Power source: 220V 50HZ;

　　8. Lamps: lighting fixtures 20W×②; UV lamps: 20W×②;

　　9. Power consumption: The rated power is 800W, using Wuxi Huatong low-noise and high-pressure centrifugal fans, quantity 2 units;

　　10. Overall dimensions: 1440W×99D×1595H (mm), operating dimensions: 1400×590×610 (mm);

　　11. Filter size: Medium efficiency filter size: 437*390×②; High efficiency filter size: 650*600*120MM×②;

　　12. Weight: about 180KG per person;

　　13. Design: The arc-shaped design of the operating table, the novel punching design of the table, and the humanized design make employees’ operations more comfortable;

　　14. Internally equipped with photocatalyst and ultraviolet lamp, using ozone ion sterilization technology;

　　15. Material: The box body is made of SUS304 stainless steel plate, the thickness of the steel plate is: 1.2MM;

　　16. Countertop material: The countertop is made of SUS304 stainless steel, thickness: 1.2MM;

　　17. Control method: Adopts an adjustable air volume fan control system and a soft-touch switch to adjust the voltage to ensure that the wind speed is always in an ideal state;

　　18. Electrical appliance control: There are ultraviolet germicidal lamps, lights, and fan speed control soft contact switches on the control panel;

　　19. The bottom adopts high-quality universal movable wheels and universal fixed wheels, which can be positioned and fixed at any time;

　　20. The surrounding seals are all made of American "Dow Corning" brand sealant, which has good sealing performance and is environmentally friendly and healthy;

　　We will briefly introduce the parameters of Type B of the file purification work arrangement table here. If you have any questions, please contact our staff.
