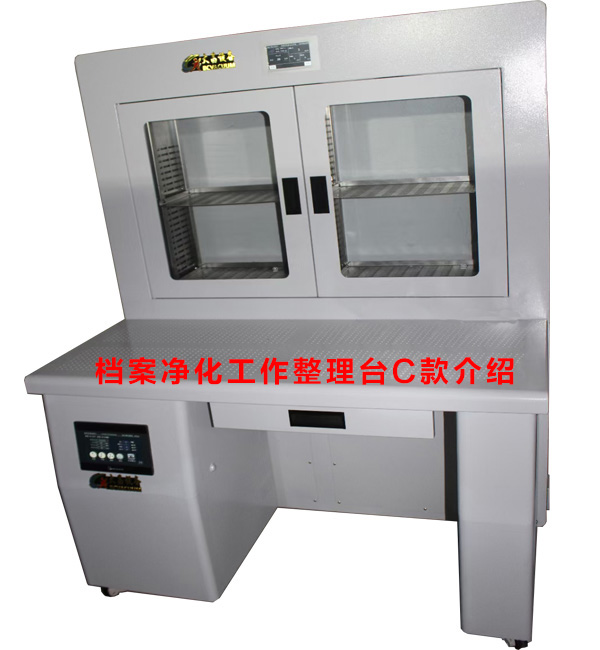

Introduction to File Purification Work Organizing Table Model C

　　The archive purification and sorting table is a professional equipment specially designed for document and archive sorting work. It is used for precise protection and restoration of paper documents, photos, negatives, microfilm and other materials. Its main functions include:

　　1. Disinfection: Clean and disinfect the document surface to eliminate harmful microorganisms and germs;

　　2. Deacidification: Use wet or dry deacidification methods to remove oxides, dirt and harmful chemicals on the paper to extend the life of the archives;

　　3. Smoothing: Smoothing out wrinkled, warped, and damaged files to restore them to their original appearance;

　　4. Protection: Prevent files from being damaged by external factors through measures such as waterproofing, dustproofing, and anti-oxidation;

　　5. Coding: Add marks, labels, barcodes and other information to files to facilitate retrieval and management;

　　6. Classification: Classify and store files according to certain principles and standards. In actual work, you can choose the appropriate file purification work table according to different needs to achieve the best results. The following is a detailed introduction to model C of the file purification work arrangement table:

　　1. Adopt sterilization module nano-photohydrogen ion sterilization unit

　　2. Air inlet sensor PM2.5, PM10, PM1.0, TVOC, temperature, humidity, CO2

　　3. Air outlet sensor PM2.5, PM10, PM1.0, TVOC, temperature, humidity, CO2

　　4. The display screen of the purification table adopts an LCD screen to clearly display the disinfection countdown, door opening and closing status, nano-photohydrogen lamp working status, and uses light strips of different colors to simulate the disinfection status, etc.

　　5. Purification table capacity: Single cabinet sterilization is used, which can complete the sterilization of 14 boxes of files at the same time. The distance between partitions is 80mm, and the standard sterilization time is 30 minutes (time can be set)

　　Equipment features

　　1. Original micro-negative pressure patented technology can efficiently achieve purification and sterilization.

　　2. There is a negative pressure suction port on the top of the tidying table. The dust during the tidying process is sucked into the tabletop with the air and then enters the purification unit for purification. It adopts the principle of bag filter and high-voltage electrostatic adsorption to effectively remove fine dust; the activated carbon filter purifies harmful and toxic gases through irreversible chemical adsorption, and is especially effective for formaldehyde, benzene series, ammonia, ozone, etc. It effectively protects the physical and mental health of the staff during the sorting process and also prevents various microorganisms produced or carried by the human body from corroding the archives. The purification table adopts a nano-photohydrogen ion sterilization structure, and the sterilization efficiency reaches more than 99%. Under limited use conditions, the sterilization efficiency can meet the requirements of a clean room.

　　Brand new intelligent control system for file purification and sorting tables

　　1. Brand new interface UI

　　2. The intelligent system of the file purification and sorting table adopts a fashionable and technological interface UI design, integrating the currently popular flat design style, combining dynamic and static, and has a more modern technological atmosphere.

　　3. Brand-new user interaction mode: The brief user interaction mode used by the file purification and sorting station intelligent system optimizes the system interface layout, makes full use of the characteristics of the system and the touch screen, and responds to the user's touch, slide and other operations through rich status changes and animation effects, enhancing the user experience. The main interface of the system displays relevant information about the purification table and the tidying table, and the operating mode and fan speed control of the tidying table, the switch of the purification table, etc. can be executed on the main interface. Information related to the tidying table includes: temperature and humidity information, air quality indicator information at the air inlet and outlet (mainly PM2.5 and TVOC), statistics on the amount of dust removed, statistics on the number of tidying files, operating mode of the tidying table and fan speed, etc. Relevant information about the purification table includes: the operating status of the purification table, the remaining purification time, etc. In addition, maintenance expiration and system fault information will also be displayed in relevant locations on the main interface.

　　We will briefly introduce the file purification work organizer model C here. At the same time, we need to pay attention to keeping the equipment in good operating condition and perform regular maintenance to ensure its normal operation.
